Variable temperature differential pressure puffing equipment

Variable temperature differential pressure puffing equipment

  • Variable temperature differential pressure puffing equipment
  • Variable temperature differential pressure puffing equipment

Variable temperature differential pressure puffing equipment

Description:
Variable temperature differential pressure puffing equipment...
Product ID:7
Views:

Introduction

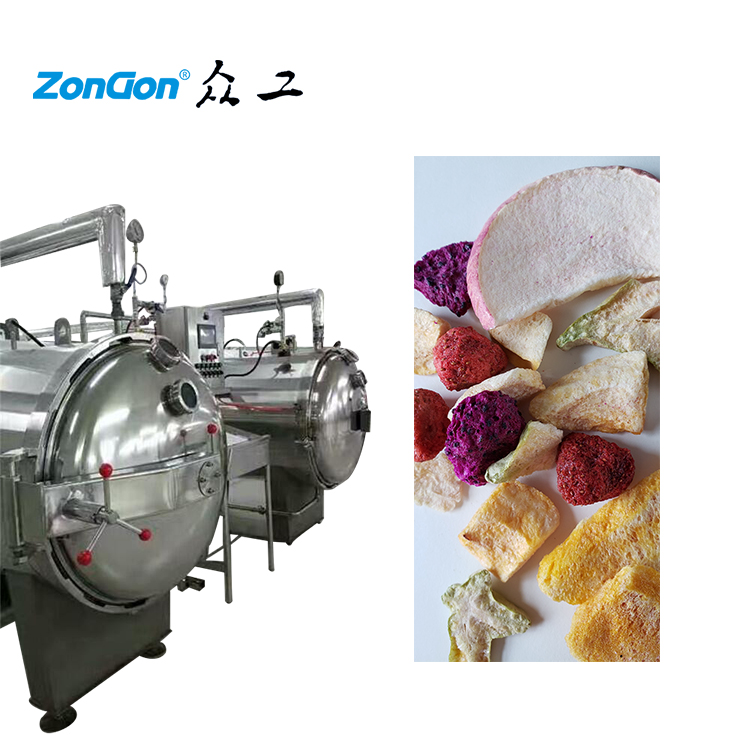

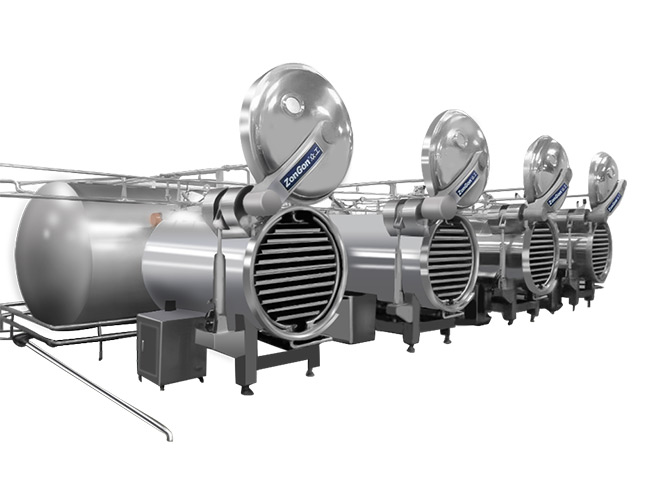

The moisture inside the material suddenly vaporizes and flashes, and a strong vapor pressure difference is generated inside the fruit and vegetable,so that the cells and tissues of the fruit and vegetable are expanded to achieve the purpose of expansion. Finally, the vacuum inside the fruit and vegetable is less than 5% by vacuum drying, and the whole fruit and vegetable chips are taken out after cooling. The device can maintain the nutrient composition of fruits and vegetables, fresh flavor, complete dehydration, crispy mouthfeel, full shape.

Customer Case



Parameter

All models can be customized

Model VPT-06 (1+1) Testing VPT-06 (2+1) VPT-10(2+1)
Type 1 piece puffing tank 1 piece vacuum tank 2 piece puffing tank 1 piece vacuum tank 2 piece puffing tank 1 piece vacuum tank
Puffing tank size 600×1000mm 600×1000mm 1000×1500mm
Finished products 5kg 10kg 20kg
Frame Sus304 Sus304 Sus304
Insulation layer Stainless steel wrapping Stainless steel wrapping Stainless steel wrapping
Steam amount 0.5Mpa 0.5Mpa 0.5Mpa
Negative pressure -0.999Mpa -0.999Mpa -0.999Mpa
